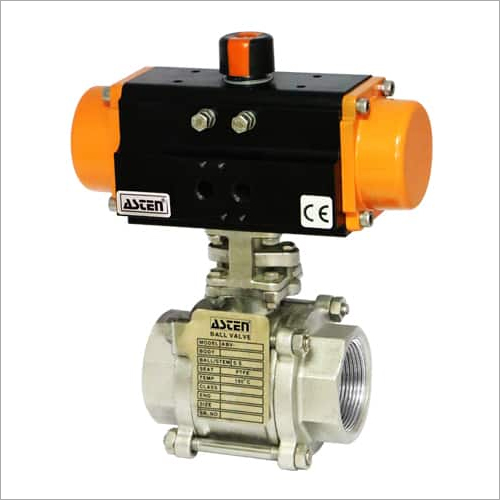

Pneumatic Ball Valve

Product Description

With the inclusion of modern technology and updated machines in all our processes, we are offering a wide range of Pneumatic Ball Valve that is manufactured using carbon steel, stainless steel and alloy steel. The offered ball valve is design to manage the flow of liquids in industries. Also, this ball valve is precisely inspected on several quality parameters to guarantee its high performance. This Pneumatic Ball Valve is offered at highly competitive price to the clients within given time frame.

Size: 1/2 to 14 Screwed/ Flanged/ Triclover/ Socket Weld

Actuator

Type

Rack and Pinion Type

Actuation

Double Acting/ Single Acting (Spring Return)

Mounting Std.

ISO 5211 an International Standard

Pneumatic Connections

NAMUR Standard

Valve

Body

ASTM A216 Gr. WCB/ ASTM A351 Gr. CF8/ CF8M

Ball

ASTM A351 Gr. CF8/ CF8M

Stem

Stainless Steel AISI 304/ AISI 316/ AISI 410

Gland

Stainless Steel AISI 304/ AISI 316/ M.S

Seat Packing

PTFE (Gland Filled, Carbon Filled, Otional in case of high temperature)

End Connection

Screwed to BSP/ NPT/ Socket Weld Ends to ANSI B 16.11

Flanged to ANSI B 16.5 Class 150/300

Table- D,E,F (On Request)

Triclover Ends - (On Request)

Socket Weld - (On Request)

Item

Type of Test

Testing Pressure

Working Pressure

Operating Temperature (high temp. on request)

Actuator

Pneumatic Bubble Test

180 PSIG

45 to 150 PSIG

-20C to 80C

Valve Body Screwed End

Hydraulic

450 PSIG

315 PSIG

Max. 180C

Valve Body Flanged 150

Hydraulic

450 PSIG

315 PSIG

Max. 180C

Valve Body Flanged 300

Hydraulic

112 PSIG

815 PSIG

Max. 180C
